80 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt

80 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt

/ 1

Part Number: LNG2T
UPC: 00045923131134
Availability: Item has been discontinued and is no longer in stock

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

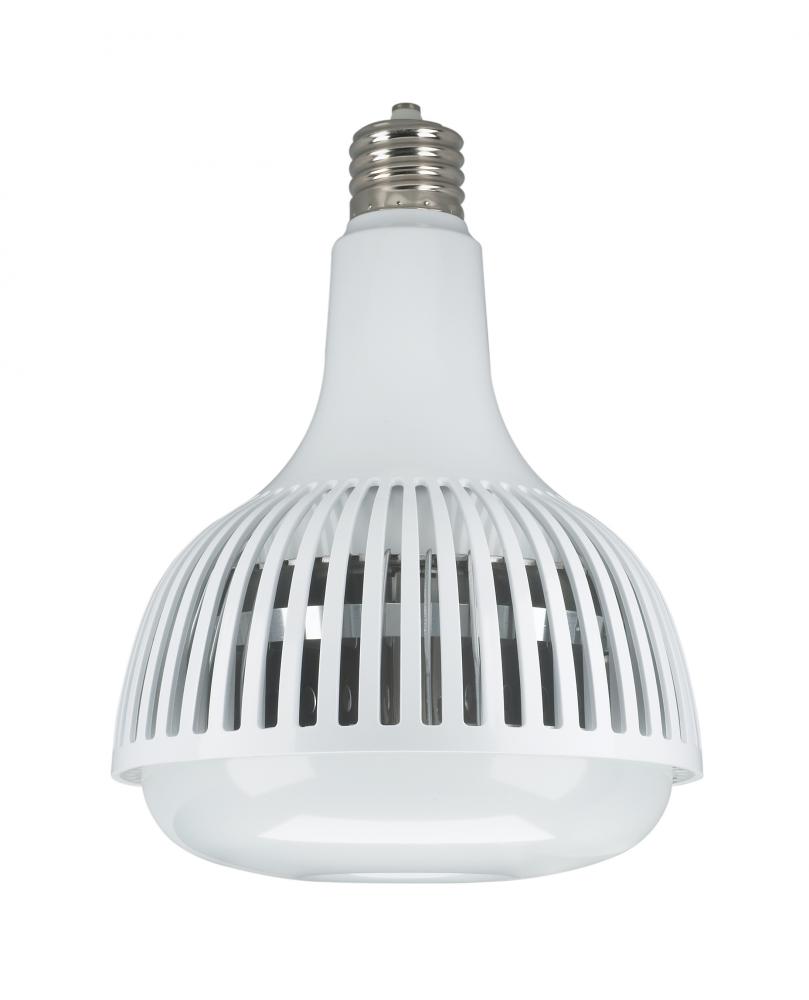

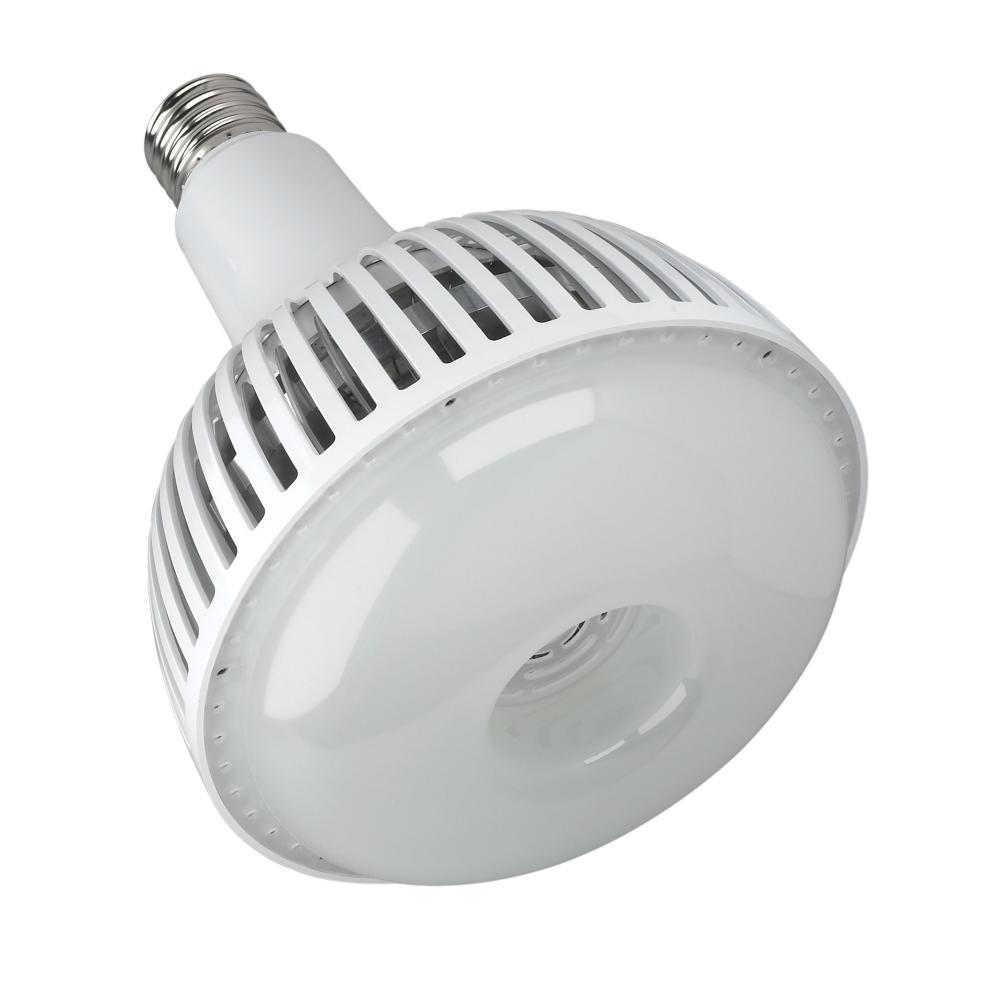

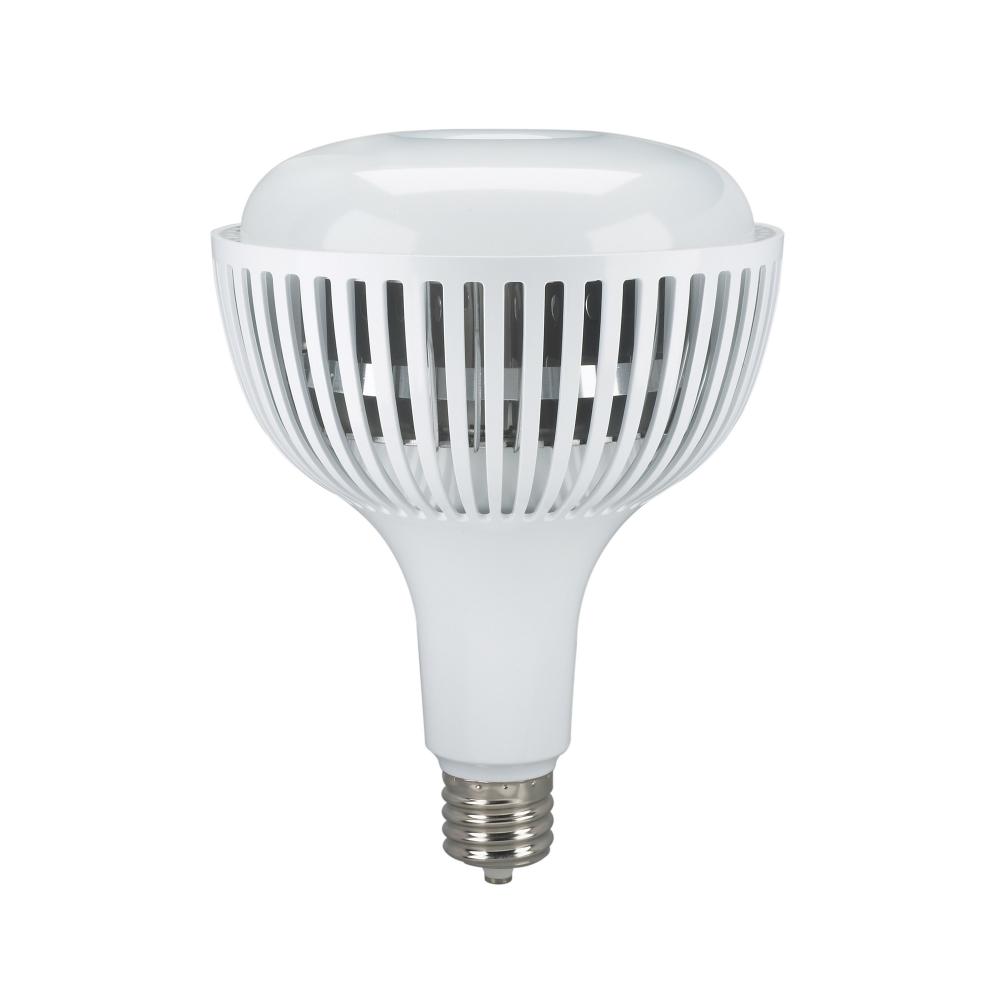

80 Watt - LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt

Specifications

Details

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White /vendors/vendorImages white.jpg

Finish Family:

White /vendors/vendorImages white.jpg

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

HB60

Diameter:

7.48

EA Length:

7.48

Harmonized Codes:

8539.52.0091

Length:

10.12

Lumens:

10000L

Shap Carton Width:

7.48

Ship Carton Height:

10.43

Ship Weight:

2.16

Warranty:

5 Year Limited - Hi-Pro

Weight:

1.72

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

115

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Translucent White

Burning Position:

Universal

Candle Power:

3000

Carton Cubic Feet:

0.3377

Cartons Per Unit:

CBCP:

3000

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

80+

DLC Approved:

Efficacy:

125.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

MOL: 10.12 inches, MOD: 7.48 inches

Feature 2:

Superior 80 CRI light quality, 10000 lumens, 5000K natural light, with a 115 degree beam spread

Feature 3:

Rated for enclosed fixtures

Feature 4:

Damp location rated

Feature 5:

80 watt LED replaces 250 watt HID

Feature 6:

Translucent white lens with white housing

Feature 7:

5 Year Limited Warranty, based on average use of Hi-Pro

HID Equivalent:

250W

Housing Color:

White

Incandescent Equivalent:

400W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Translucent White

Location Rating:

Damp

Long Description:

Satco's S13113 80 watt 20000 lumen Hi-Bay LED HID Type B ballast bypass replacement lamp with built in surge protection is perfect for industrial and commercial applications. The translucent white bulb features a mogul extended base and a beam spread o

Material:

Plastic

Minimum Compartment Size:

Length: 13.5 in. Width: 13.5 in. Height: 12 in.

Operating Frequency:

50-60Hz

Operating Temp:

-40C (-40F) to +60C (+140F)

Pack Type:

Box

Power Factor:

0.98/0.92

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

Satco's 80 watt 20000 lumen Hi-Bay LED HID Type B ballast bypass replacement lamp with built in surge protection is perfect for industrial and commercial applications. The translucent white bulb features a mogul extended base and a beam spread of 115 d

SDS class:

LED_Lamp

Short Description:

80W/LED/HID-HB/5K/120-277V

Style:

Contemporary

Surge Protection:

Built-in surge protection - 6KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Wattage Selectable:

Watts:

80W
