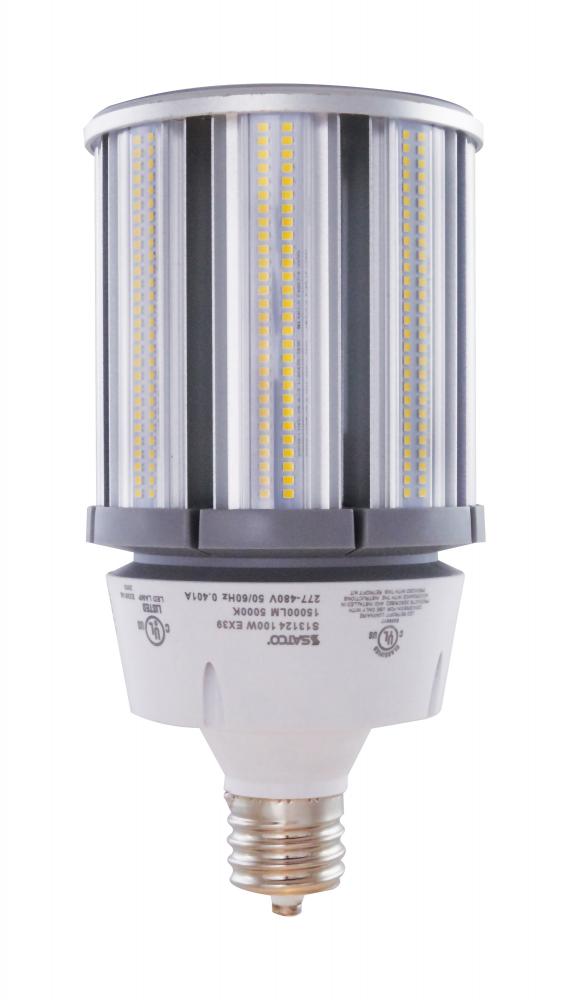

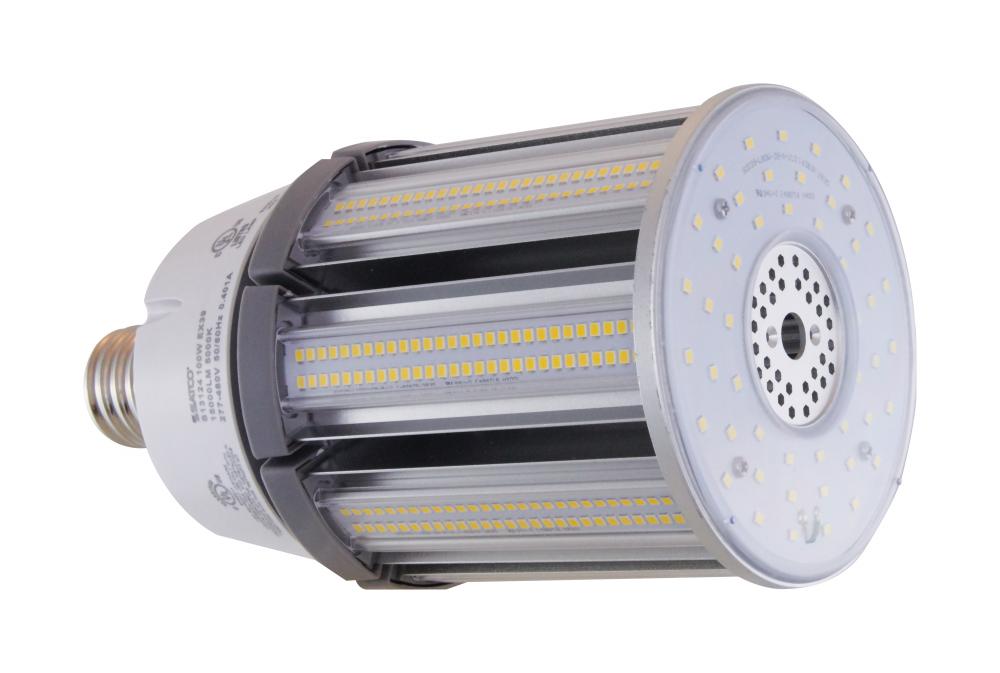

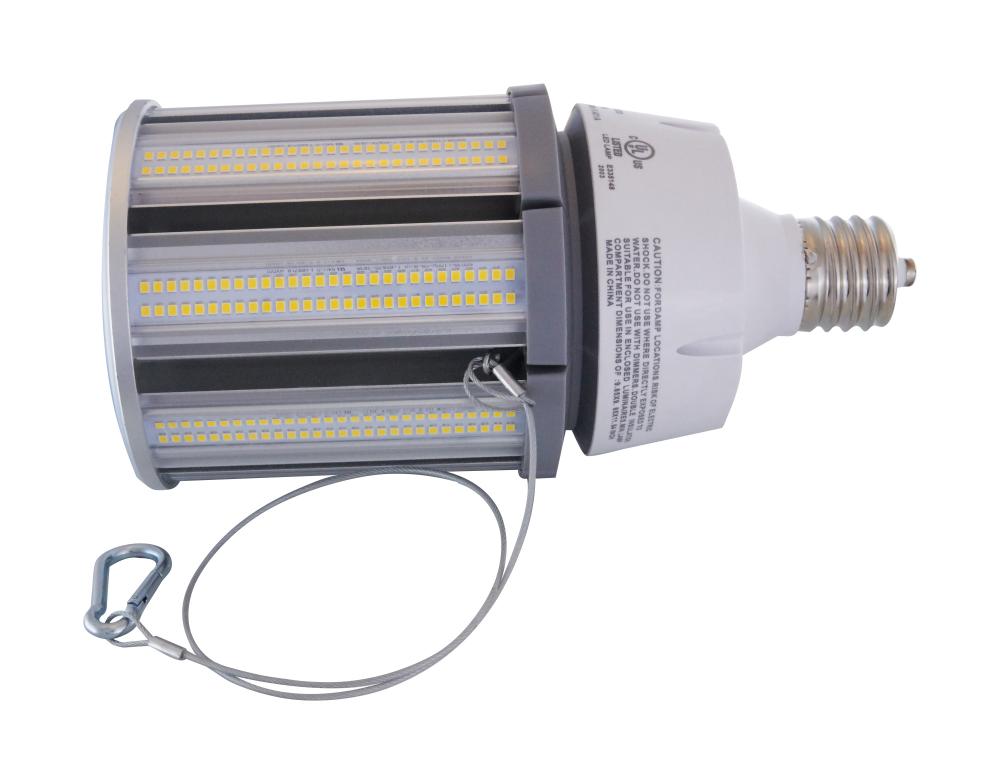

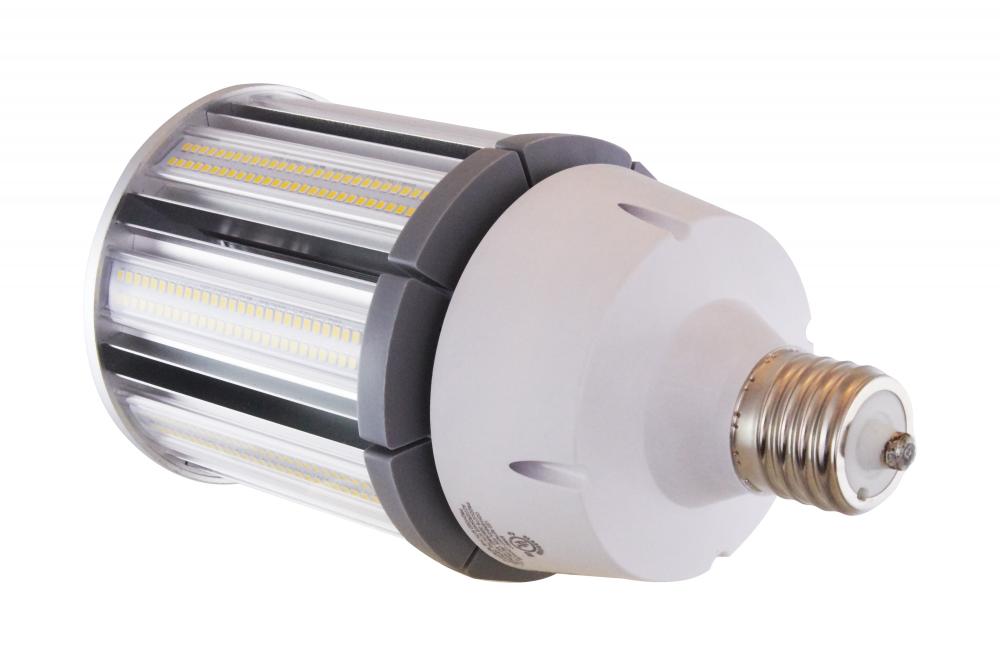

100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt

100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt

$
118
25
/ 1
  • Part Number: LNGZ6
  • UPC: 00045923131240
  • Availability: Item has been discontinued and is no longer in stock
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt
Specifications
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Finish Family:
No Finish
Category:
LED
Sub-Category:
HID Replacements
Volts:
277V-480V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
Corncob
Diameter:
5.2
EA Length:
5.5
Harmonized Codes:
8539.52.0091
Length:
10.2
Lumens:
15000L
Shap Carton Width:
5.5
Ship Carton Height:
11.99
Ship Weight:
3.92
Warranty:
5 Year Limited - Hi-Pro
Weight:
3.3
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Universal
Candle Power:
1418
Carton Cubic Feet:
0.2099
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
150.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Natural light
Feature 2:
LED
Feature 3:
Damp, Enclosed Rated Replacement Lamp
Feature 4:
L:10.20 D:5.20
Feature 5:
Type B Ballast Bypass
HID Equivalent:
400W
Housing Color:
White/Grey
Incandescent Equivalent:
400W
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP64
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
Satco's S13124 100-watt LED HID replacement bulb offers natural light and a 360 degree beam spread. The lamp features built-in surge protection and a Mogul extended base providing superior outdoor illumination. This lamp has a compact design and delive
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 9.8 in. Width: 9.8 in. Depth: 11.5 in.
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Satco's 100-watt LED HID replacement bulb offers natural light and a 360 degree beam spread. The lamp features built-in surge protection and a Mogul extended base providing superior outdoor illumination. This lamp has a compact design and delivers 50,0
SDS class:
LED_Lamp
Short Description:
100W/LED/HID/5K/277-480V/EX39
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
100W
